“The PRO Rental Range provides reliable power for today’s world with a competitive offering that delivers everything you need. Providing unrivalled quality

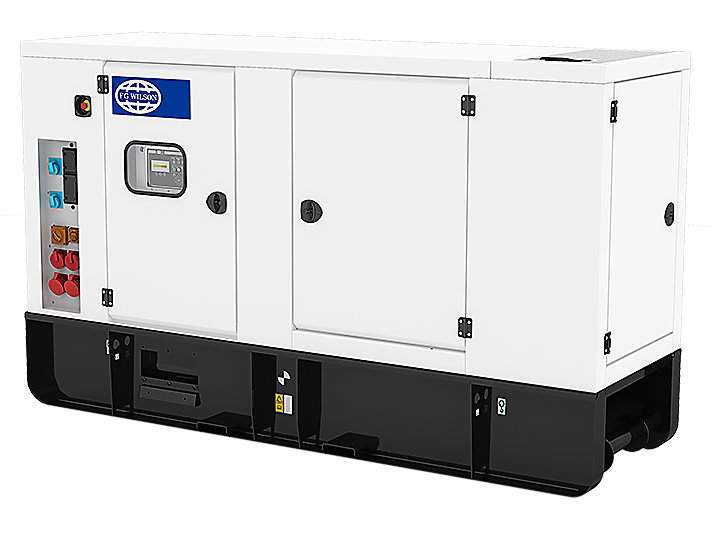

Generator Set Specifications
|Minimum Rating||220 kVA / 275 kW|
|Maximum Rating||250 kVA / 312.5 kW|
|Frequency||50 Hz or 60 Hz|
|Speed||1500 or 1800 RPM|
|50 Hz Prime||220 kVA / 275 kW|
|50 Hz Standby||– / –|
|60 Hz Prime||250 kVA / 312.5 kW|
|60 Hz Standby||– / –|
Generator Set Configurations
|Emissions/Fuel Strategy||EU3A Emissions Compliant|
|Engine Model||Perkins® 1506D-E88TAG4|
|Bore||112 mm (4.4 in)|
|Displacement||8.8l (537 cu. in)|
|Stroke||149 mm (5.9 in)|
FG Wilson Diesel Engine
Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.
The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.
Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.
Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support
FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
