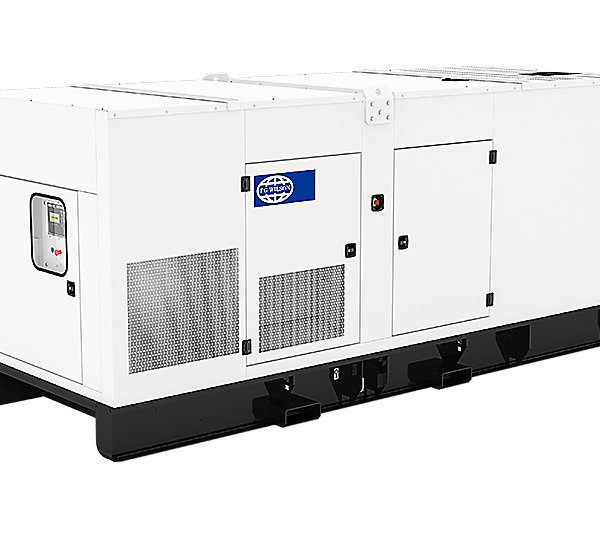

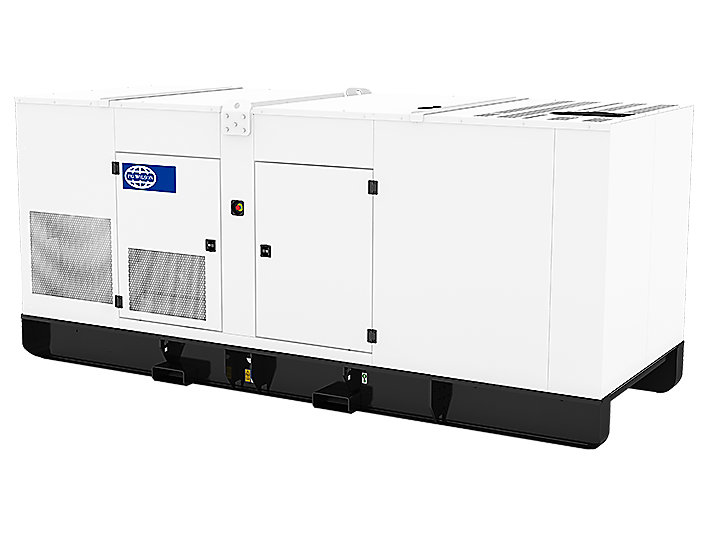

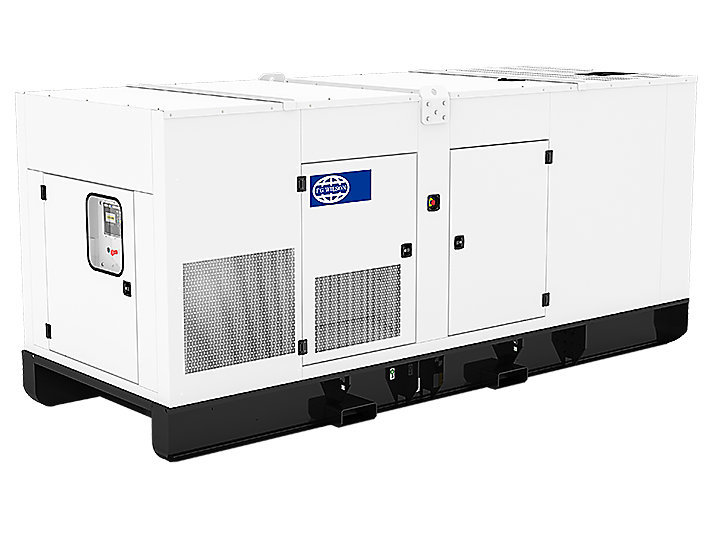

PRO500-1

Minimum Rating
500.0 kVA / 400.0 kW

Maximum Rating
525.0 kVA / 420.0 kW

Emissions/Fuel Strategy
Fuel Optimised


SKU: 9b0102f8571b Categories: ,

Full Specifications

Generator Set Specifications

Minimum Rating 500.0 kVA / 400.0 kW
Maximum Rating 525.0 kVA / 420.0 kW
Emissions/Fuel Strategy Fuel optimised
50 Hz Prime 500.0 kVA / 400.0 kW
60 Hz Prime 525.0 kVA / 420.0 kW
Frequency 50 / 60 Hz Switchable
Speed 1500 / 1800 RPM
Voltage 127-480 Volts

Engine Specifications

Engine Model 2506A-E15TAG2
Bore 137 mm (5.4 in)
Stroke 171 mm (6.7 in)
Governor Type Electronic
Displacement 15.2L
Compression Ratio 16:01

Benefits & Features

FG Wilson Diesel Engine

Perkins Diesel Engine



Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

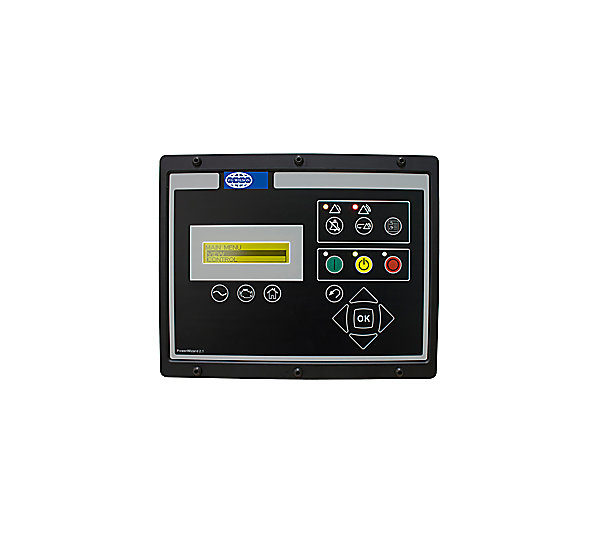

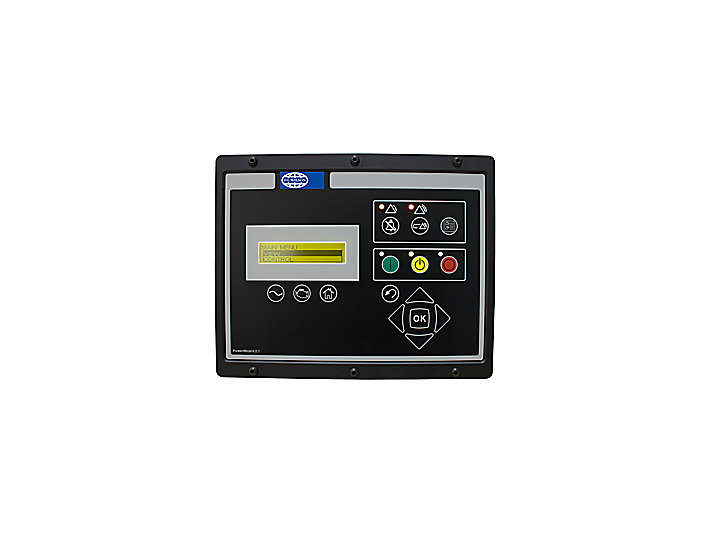

PowerWizard 2.1+

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

Design Criteria

Prime Rating These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. Standby Rating These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). Standard Reference Conditions Note: Standard reference conditions 25°C (77°F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.



Single-Source Supplier

Fully prototype tested with certified torsional vibration analysis available



World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Optional Equipment

Starting/Charging

  • 24V battery charger

General

  • CE labelling
  • 1000 Hour Service Interval
  • Anti-condensation heater 230 VAC
  • Coolant heater 230 VAC
  • Earth Leakage
  • Lube oil sump pump
  • Dual wall fuel tank

Control Panel

  • Synchronising control panel and motorised breakers

Alternator

  • Permanent Magnet Generator (PMG)

Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with high ambient capability
  • Coolant Drain Valve
  • 50% coolant antifreeze with corrosion inhibitor
  • Pusher fan with guards

Exhaust

  • Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

  • 784 L single wall fuel tank, 9 hr runtime @ 75% prime rating
  • Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • PowerWizard 2.1+

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral fuel tank
  • Forklift pockets and heavy duty drag bar with skid plates
  • Battery Tray and Cables
